High Pressure Diaphragm & Plunger Pump
Designed in accordance to API 674 for High Pressure fluid transfer applications.
Introduction
Innopump T Series and Q Series pumps are horizontal reciprocating pumps offered in either a triplex or quintuplex configuration. Both series are available as plunger pumps, and many are also available piston pumps and diaphragm pump. These pumps are outstanding performers and extremely cost effective.
They feature conservative pressure ratings and slow speed operation for enhanced durability. These are high pressure reciprocating pumps which have 24 types with 800 different specifications. Highest output pressure available is 280 MPa. And theoretical flow rate 0.2-210 m3/h. These high pressure pumps are used as water injection pum sed in oil field,pump for tank-filling of liquified carbon dioxide, high pressure steam boiler feed water pump, CO2 supercritical extraction pump, high pressure mud pump, cement grouting pump, pressure test pump, copper liquid pump, Detergent sludge pump, reciprocating crude oil pump, sea water pump, reverse osmosis desalination pumps, high pressure dephosphorizing pump used in metallurgical industry, cleaning pump, pipe cleaning pump, pressurizing pump, hyper pressure pump and The polymer injection pumps.
Innopump 3CQ series are pumps for intake and extraction of liquified gas. Their maximum output pressure is 120 MPa. These pumps have following characteristics, ie: advanced technology, compact structure, high efficiency, low noise, low gas-sealing factor, easy maintenance and reliable performance which reaches domestic leading level. They are widely used in transportation of liquified gas and in supercritical extraction of carbon dioxide in medical and food industries.
All series of products of our company have mutual characteristics in advanced design, modern structure, stable run, convenient maintenance, safe and reliable sealing, long life in easy-wear parts, high volumetric efficiency,etc. On the base of existing series of products, tailor-made product with special specification can be provided to the users.
Product Applications
INNO Diaphragm and Plunger Pumps are used in the oil & gas, chemical transfer, manufacturing industries including the following applciations:
- Water Injection Pump
- Polymer Injection Pump
- Butanediol Charging Pump
- Coal Seam Water Injection Pump
- Transferring of Liquid Amonia, Liquid CO2
- Alcohol Injection Pump
- Oil Hydrogenation applications
- Pipeline Cleaning Pump
- Liquid Methanol Pump
- High water pressure applications

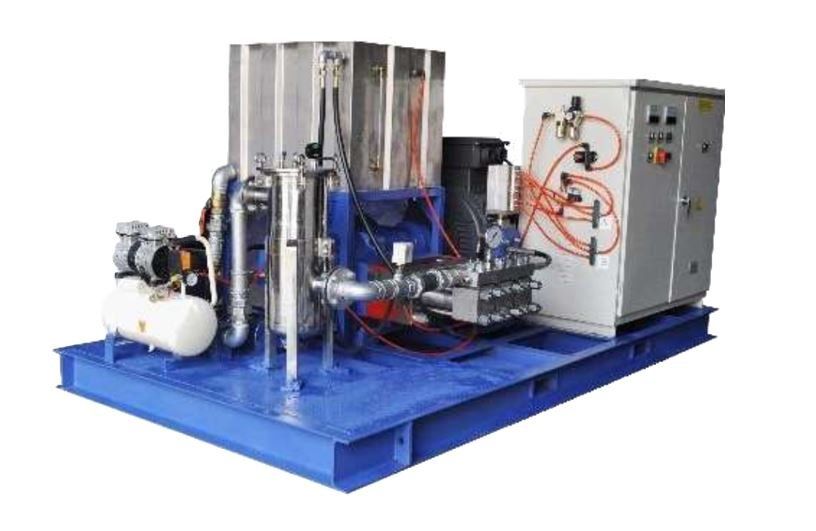

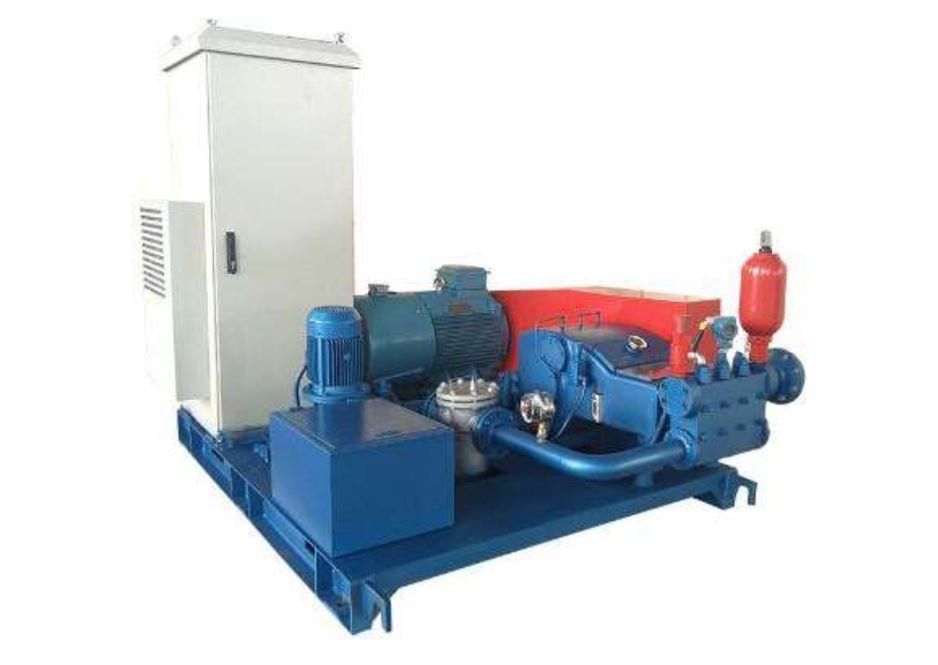

Typical Pump Skid Set Up
Construction Features
Features
- Diaphragm separates medium from the hydraulic oil, ensuring a leak free pumping. For further protection, Double diaphragm are used. - The second diaphragm will continue to work & while setting of an alarm if the first diaphragm ruptures.
- Auto vent valve release in the diaphragm & tank.
- Compensation valve maintain the oil mass in the diaphragm chamber.
- Hydraulic metal-diaphragm pump are use for high temperature & pressure application(451 C and pressure to 70 MPa.
- Multi head design for large flow or low pulsation are used.
Features
- Simple design, for large flow and high pressure & low pulsation
- Plunger are coated with for hardness & reduce friction
- Modular design allow for replacement of plunger,check valve & packing with dismantling the pump head.
- Pump head bolt are self-positioning & anti-loose design to assure safe running of the high pressure pump
- Many type of check valve available to meet various application.
